Introducing...
    OneMinuteNMR
         Open-Access, High-Throughput NMR Platform

The OneMinuteNMRTM platform delivers both High-Sensitivity NMR and Open-Access, High-Throughput NMR in an integrated, affordable package.  This revolutionary NMR detection and automation system dramatically lowers the cost and effort of NMR at your lab, and opens the door to new possibilities in the same way that open-access high-throughput systems have changed mass spectrometry.

Look and Listen:
Watch the OneMinuteNMR Audio/Visual Presentation and receive a DVD showing the OneMinuteNMR platform in action.

Get the Facts:
Read the OneMinuteNMR Fact Sheet

You can't afford not to have the One-Minute NMR system. High-Throughput saves you from having to buy new spectrometers, and Open-Access makes it easier to use NMR.

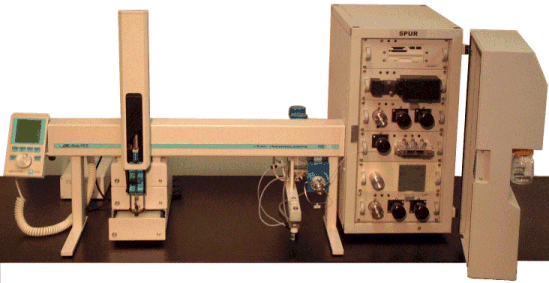

The Protasis OneMinuteNMR System

CapNMR Probe

OneMinuteNMR Software

Makes running your NMR systems easier than ever and delivers the most complete feature set of any NMR automation system...

  • Single page operation
  • Remote Intranet/Internet login
  • One-Minute plate login
  • 100% web-based
  • Supported on Windows / UNIX / Linux / Macintosh Systems
  • Easy graphical sample entry
  • E-mail alerts and completion messages anywhere
  • Sample list import from your instruments (e.g., HPLC or MS)
  • Priority and night samples
  • Automatic probe wash
  • User security and accounting
  • Open SQL database
  • Direct-edit sample grid
  • Optimized TCP/IP spectrometer interfaces
  • Recoverable error reporting
  • NMR, LEAP, and HTSL macro capability
  • Multiple configurable/selectable NMR experiments
  • Data overwrite protection
  • Run 1000+ 1H-NMR samples/day
The One-Minute NMR web page makes sample login as easy as 1,2,3. 1. Login, 2. Name samples and specify experiments, 3. Locate samples on liquid handler.

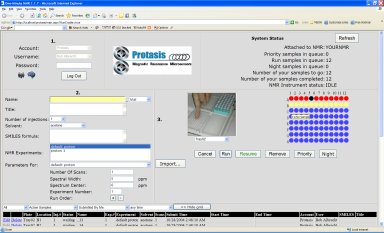

Protasis OneMinuteNMR Web Page

LEAP/CTC PAL Liquid Handler

The workhorse for high-throughput analytical instruments and provides options not found in other systems...

  • Syringe-only design
  • Low dead volume injector
  • Heated and/or cooled sample drawers
  • Active wash station
  • Small footprint
  • Sample return capability
  • Configurable features
  • Flexible sample format, vials, microplates
  • 9000 + sample capacity
  • Injection volumes as small as 1 microliter
  • Sample dilution capability

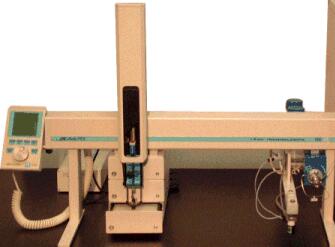

LEAP HTS PAL Liquid Handler

Protasis Discovery Tower

Modular instrument control, 3-solvent switching, automatic degassing and future expansion in an attractive package...

  • Integrated instrument controller / Web Server
  • High-pressure pump
  • Helium sparging solvent blanketing
  • Vacuum degassing
  • SPUR sample separation and concentration
  • DFGF separation module
  • PDA UV detector
The Protasis Discovery Tower integrates instrument control and modular systems in a small-footprint tower.

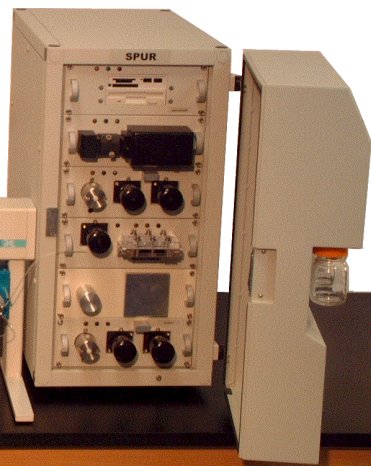

Protasis Discovery Tower

Protasis/MRM CapNMR Probe

Affordable high-sensitivity and...

  • Best mass-sensitivity on the market
  • Shorter acquisition times
  • Minimal operational costs
  • Reduced solvent use
  • Easy installation and removal

  • Better spectral quality

  • Unsurpassed salt/buffer tolerance

  • Excellent line shape with easy shim

  • Lower deuterated solvent use

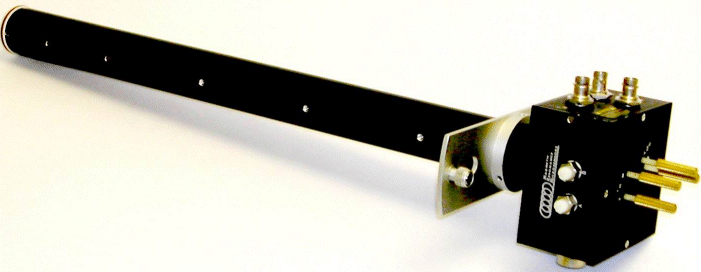

Protasis CapNMR Probe
